Shisha Charcoal Briquette Making Machine

Many biomass materials can can be processed so that they can be used more effectively, such as fruit woods, coconut shell, bamboo and so on, after pretreatment such as carbonization and crushing, they can be pressed into shisha charcoal by our shisha charcoal briquette making machine, shisha charcoal is a popular smokable cigarette-like substance in the Arab region. Our hookah charcoal briquette making machine can press materials into shisha charcoal with high density and high hardness, our machines are very popular and loved in the Arab region.

Working Principle

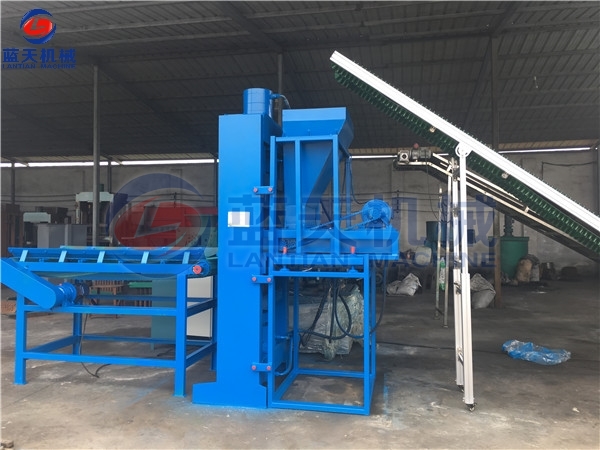

Hookah Charcoal Briquette Making Machine

When shisha charcoal briquette making machine is working, it adopts Pascal's principle, after sensor was switched, the pretreated charcoal powder are transferred to the die, and materials are pressed by hydraulic pump under high pressure. Our machine is controlled by the PLC intelligent control system, and pressure can be adjust between 100-200t, the finished product has high strength, high density, high hardness and good burning effect, and shisha charcoal briquette making machine price is just, quality is high, it is very popular.

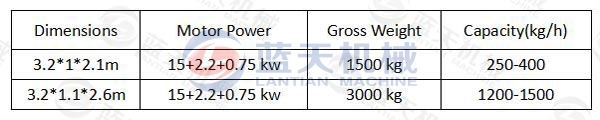

Parameter

Details description

Our hookah charcoal briquette making machine is consists of main engine, PLC intelligent control system, hydraulic pump, hydraulic cylinder, customized mould and output conveyor. Our shisha charcoal briquette making machine price is just and quality is high, which is received widely praise in many countries.

Pressure effect display

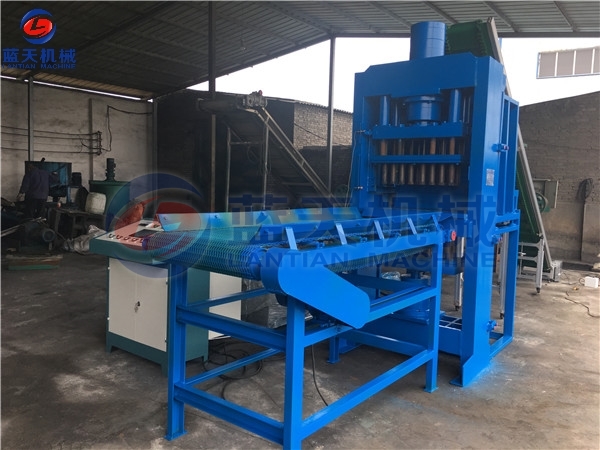

Machines details and advantages

1.PLC intelligent control system can adjust pressure and stamping time, pressure can be adjusted between 100-200 tons

2.By approaching the sensor and switch, the position of the top die and the base die can be adjusted, so as to determine the material input, material height, weight and density.

3.The mould is made of 65 # manganese steel, and mould shape can change

4.Hydraulic pump base is made of high quality rubber material with good shock absorption effect.

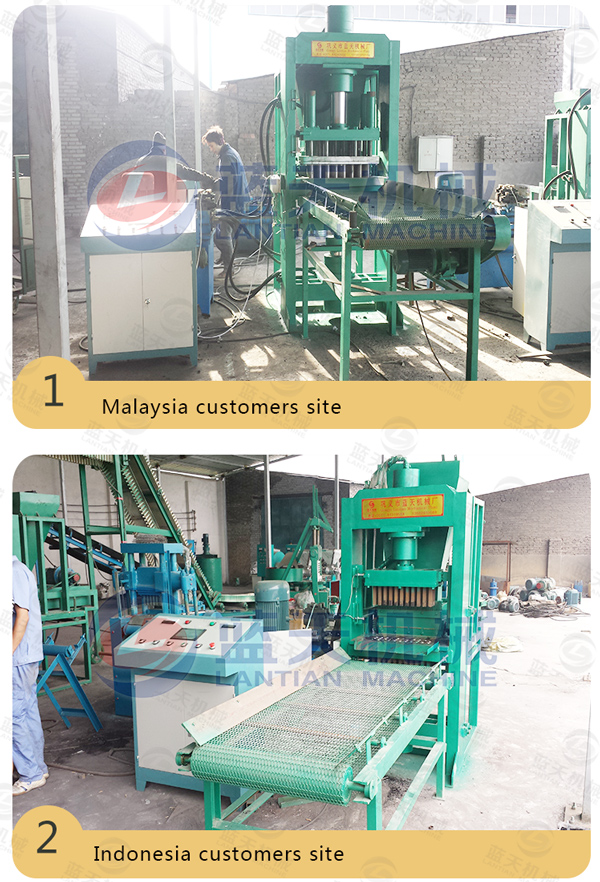

Customers site

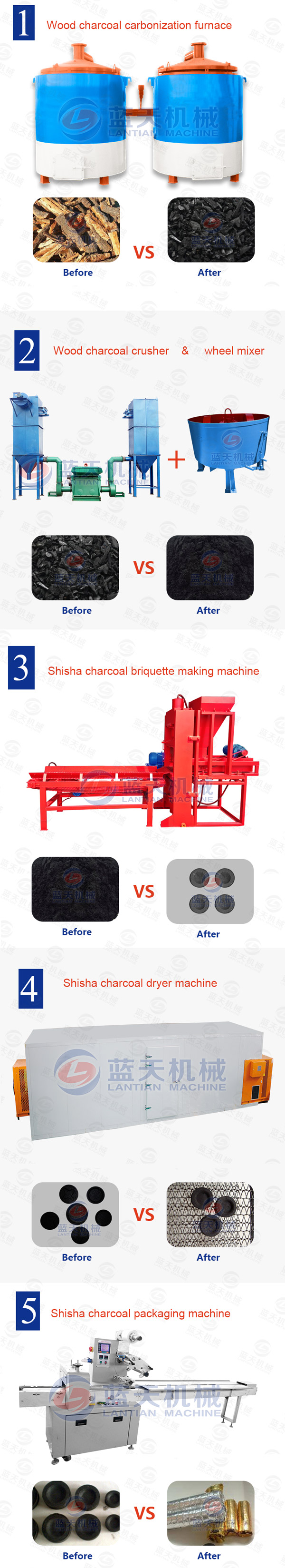

Product line

1.Before briquetting, biomass materials need to be carbonized

2.After carbonized, materials charcoal need crush into charcoal powder by charcoal crusher machine, and then charcoal powder need add adhesive and stirring evenly in binder mixer

3.Mixed materials will be transferred shisha charcoal briquette making machine for pressing and briquetting.

4.If the finished materials need to be dried, they can drying out excess water by our shisha charcoal dryer machine for store well and burning more thoroughly,

5.Dried shisha charcoal can pack by our shisha charcoal packing machine, to make them store well and sell well.
